A300
A300
Air Dryer BPHE

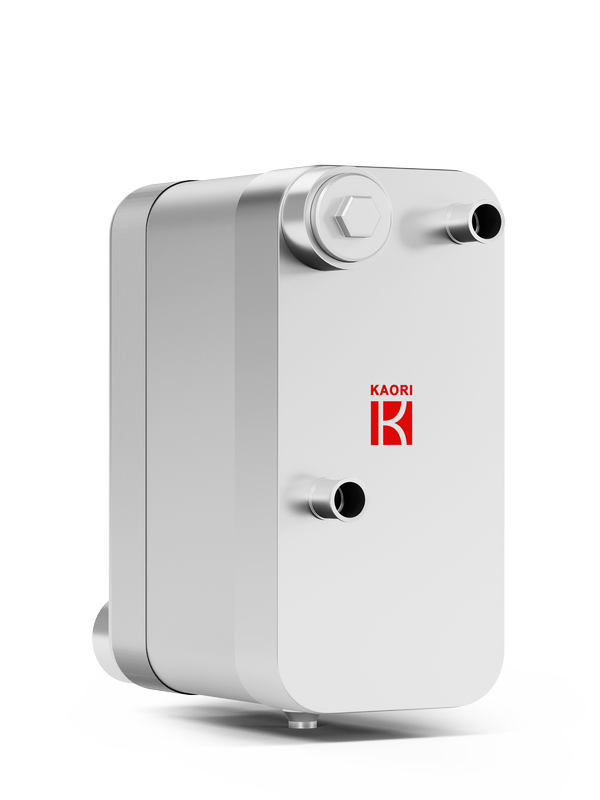

KAORI A300 is mainly designed for large air dryer applications under 50m³/min with up to 10 bar working pressure. It is made with stainless steel chevron plates and high purity copper foil. This allows the advantages of compactness, high heat transfer efficiency, and high corrosion resistance. Also integrated with patented structure design, combining air precooler, water separator and evaporator together in one. Reaching low pressure drop stable dew point, precooling and making it an ideal heat exchangers for air dryer applications.
Industry：
Air Dryer
Air Compressor
Application：
Other
Plate Material：
SUS304
Brazing Material：
Copper
Max number of plates(N)：
0
Working Pressure：
10
Max working temperature：
200
Thickness(mm)：
depends on the number of plates
Weight(kg)：
depends on the number of plates
L1(mm)：
651
L2(mm)：
520
W1(mm)：
321
W2(mm)：
190
