A140
A140

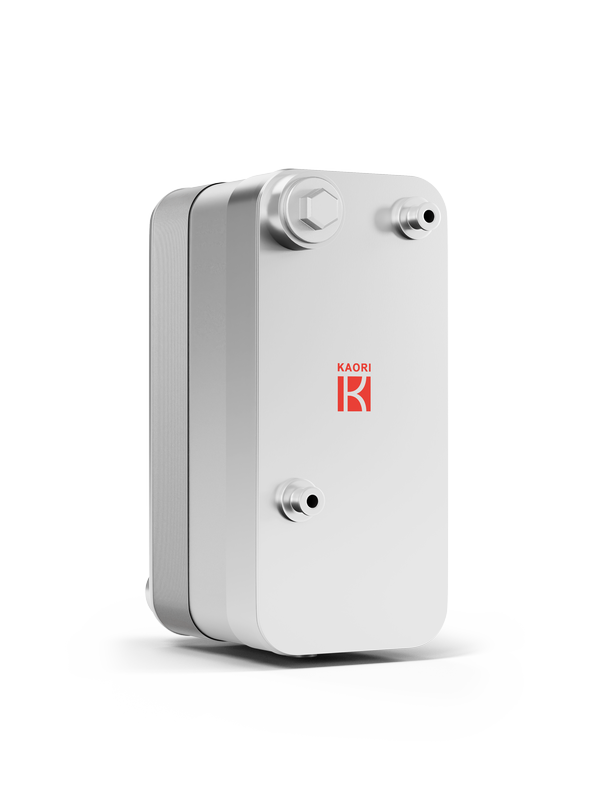

Air Dryer BPHE
A140 is dedicated to the application related to cooling air dryer. The integration of A series includes gas pre-cooling, evaporator and separator. The patented design separator can perfectly dehumidify the compressed air and prevent from clogging. The design can effectively save the time in configuration and space.
Industry:
Air Dryer
Air Compressor
Application:
Other
Plate Material:
SUS304
Brazing Material:
Copper
Max number of plates(N):
100
Working Pressure:
30
Min test pressure(bar):
43
Max working temperature:
200
Thickness(mm):
depends on the number of plates
Weight(kg):
depends on the number of plates
Connection-Solder(up to):
Depends on working condition

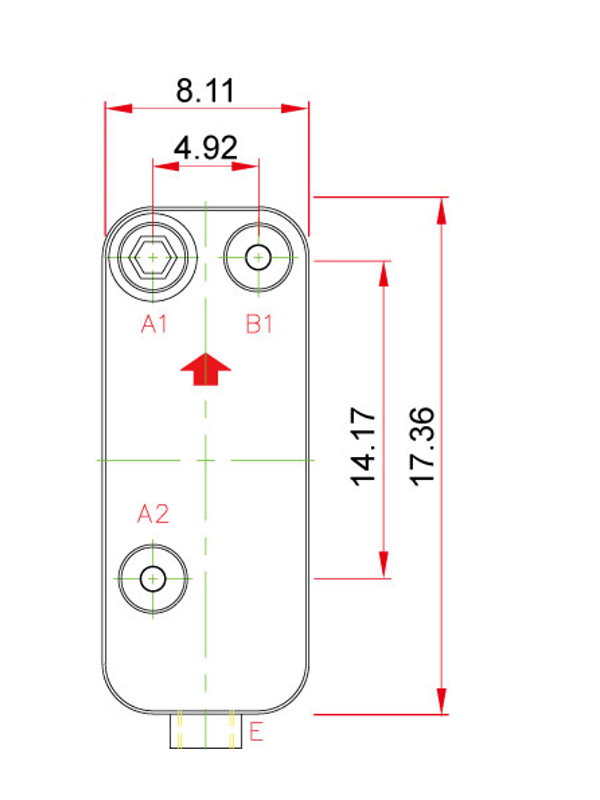

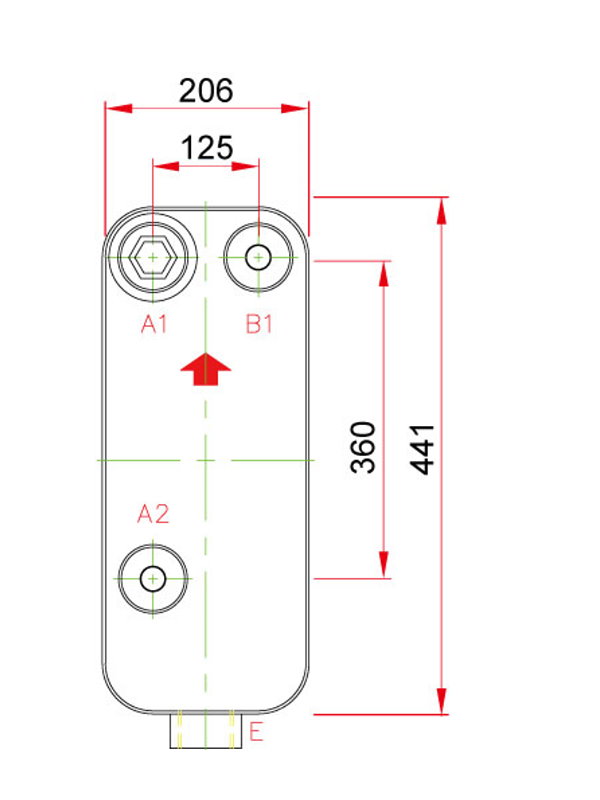

L1(mm):
441
L2(mm):
360
W1(mm):
206
W2(mm):
125
