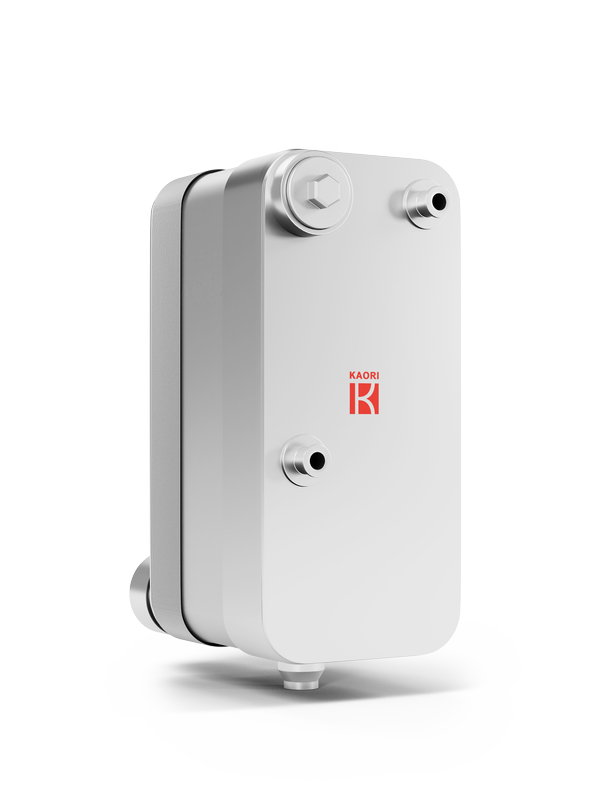

A210
A210
Air Dryer BPHE
A210 is dedicated to the application related to cooling air dryer. The integration of A series includes gas pre-cooling, evaporator and separator. The patented design separator can perfectly dehumidify the compressed air and prevent from clogging. The design can effectively save the time in configuration and space.
Industry:
Air Dryer
Air Compressor
Application:
Other
Plate Material:
SUS304
Brazing Material:
Copper
Max number of plates(N):
140
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Plate Heat Transfer Area:
depends on the number of plates
Thickness(mm):
depends on the number of plates

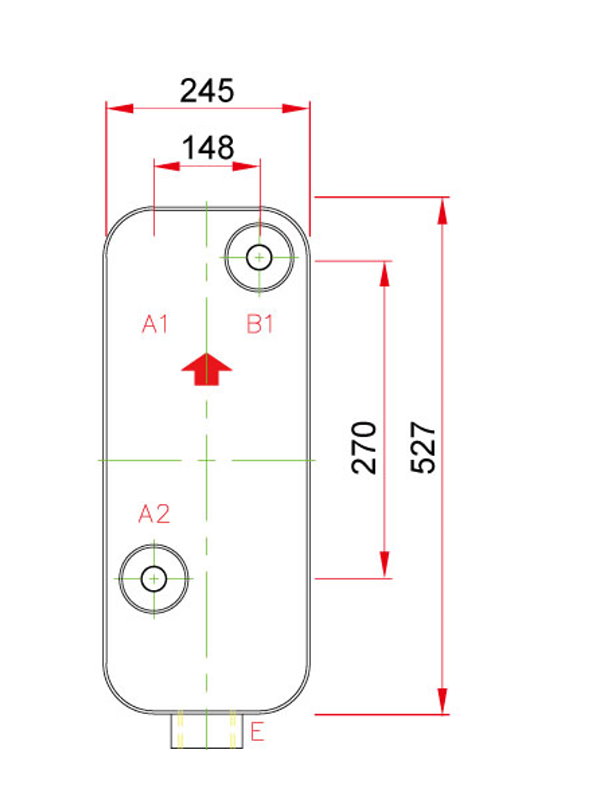

L1(mm):
527
L2(mm):
430
W1(mm):
245
W2(mm):
148
