M050
M050

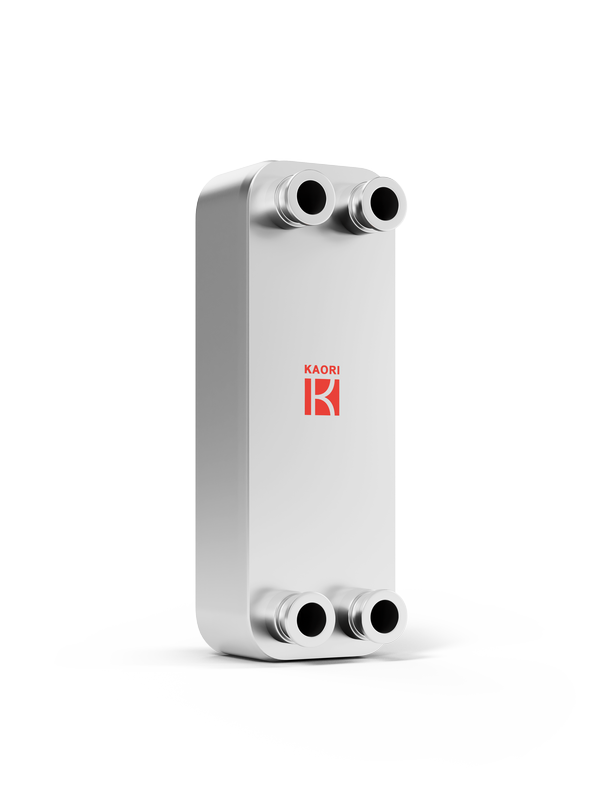

Corrosion Resistant BPHE
M050 uses the material, equally classified as SMO254. It has outstanding corrision resistence and the resistence against erosion from crack. Besides, the material contains more volume of nickel, chromium, and molybdenum, which reinforces the capability to resist erosion and prevent cracking.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Swimming Pool
Application：
Other
Plate Material：
Equivalent to SMO254
Brazing Material：
Ni
Max number of plates(N)：
60
Working Pressure：
10
Max working temperature：
200
Thickness(mm)：
10.0+2.40*N
Weight(kg)：
1.04+0.136*N
Connection-Male Thread(up to)：
1 1/4"
Connection-Female Thread(up to)：
1"
Connection-Solder(up to)：
1 1/8"

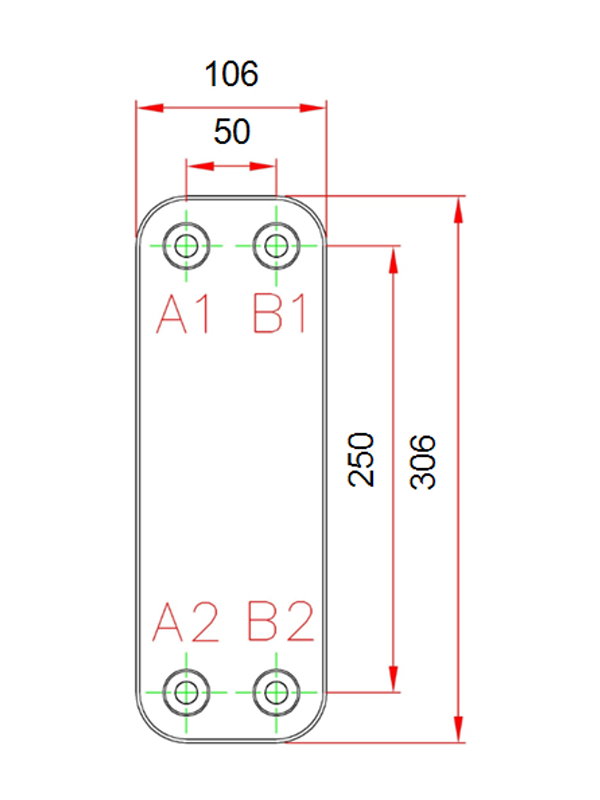

L1(mm)：
306
L2(mm)：
250
W1(mm)：
106
W2(mm)：
50
