M205
M205

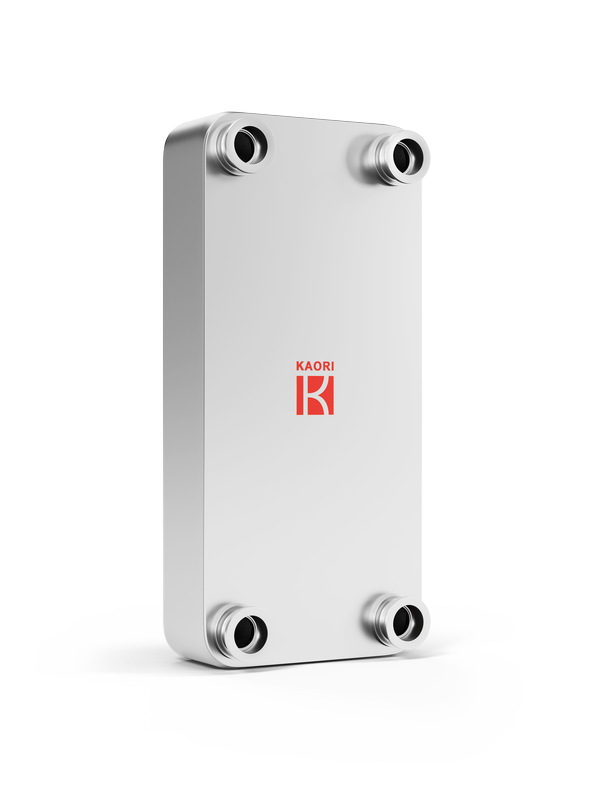

Corrosion Resistant BPHE
M205 uses the material, equally classified as SMO254. It has outstanding corrision resistence and the resistence against erosion from crack. Besides, the material contains more volume of nickel, chromium, and molybdenum, which reinforces the capability to resist erosion and prevent cracking. M205 is suitable for working conditions filled with chlorine such as swimming pool.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Swimming Pool
Application：
Other
Plate Material：
Equivalent to SMO254
Brazing Material：
Ni
Max number of plates(N)：
140
Working Pressure：
10
Max working temperature：
200
Thickness(mm)：
11.5+2.40*N
Weight(kg)：
6.27+0.544*N
Connection-Male Thread(up to)：
2"
Connection-Female Thread(up to)：
1 1/2"
Connection-Solder(up to)：
2 1/8"
L1(mm)：
528
L2(mm)：
456
W1(mm)：
246
W2(mm)：
174
