D206

Double Wall BPHE

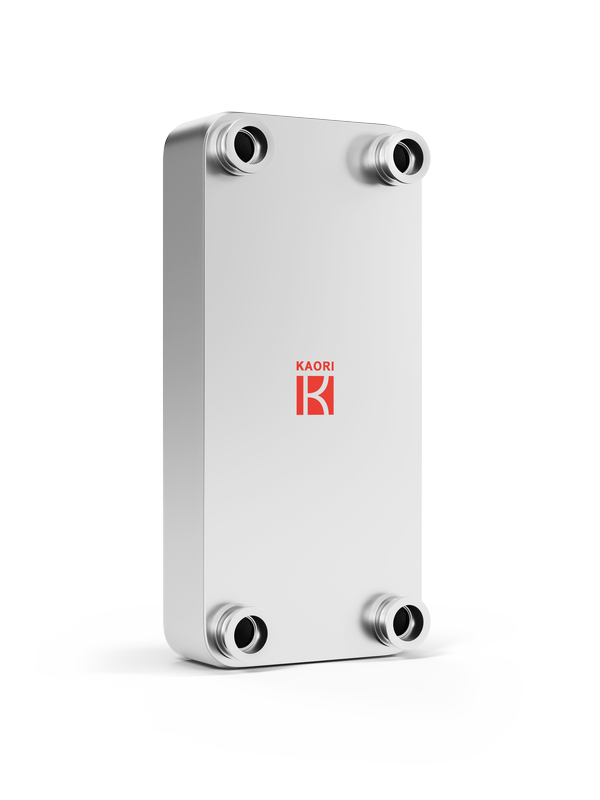

Kaori D206 brazed plate heat exchangers with 528mm in length and 246mm in width, making it the biggest model in Kaori’s double wall series. It is also one of a few models in the market that is capable of handling up to 45 Bar working pressure in its class, making it suitable for low GWP refrigerants (R32, R290 or HFO-blends refrigerants).

Industry: Chiller Heat Pump Reefer / Freezer Food Equipment Industry Process Cooling/Heating Bio-Tech Renewable Energy Solar Heating Floor Heating Snow Melting District Heating
Application: Condenser Subcooler Economizer Oilcooler Intercooler
Plate Material: SUS316 SUS304
Brazing Material: Copper
Max number of plates(N): 140
Working Pressure: 45
Max working temperature: 200
Thickness(mm): 16.5+2.60*N
Weight(kg): 13.84+0.772*N
Connection-Male Thread(up to): 2"
Connection-Female Thread(up to): 2"
Connection-Solder(up to): 2-1/8"
Connection-Flange(up to): 2"

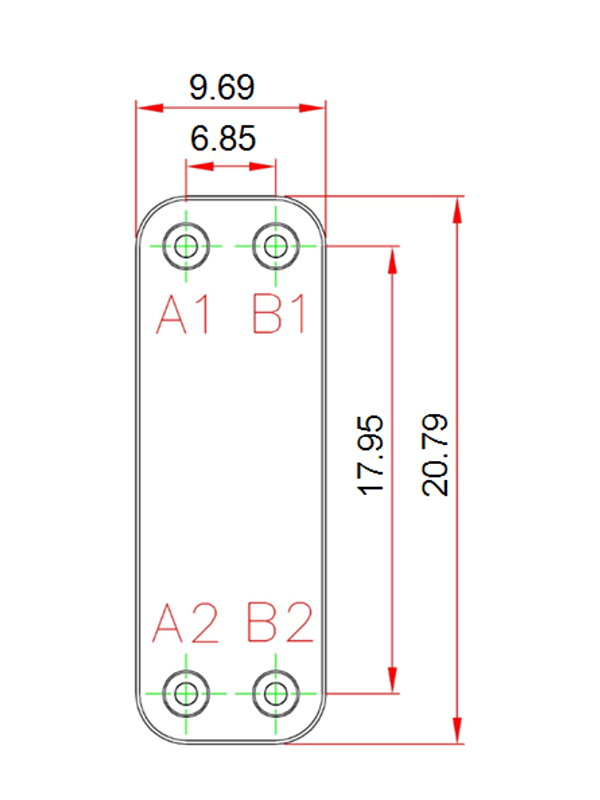

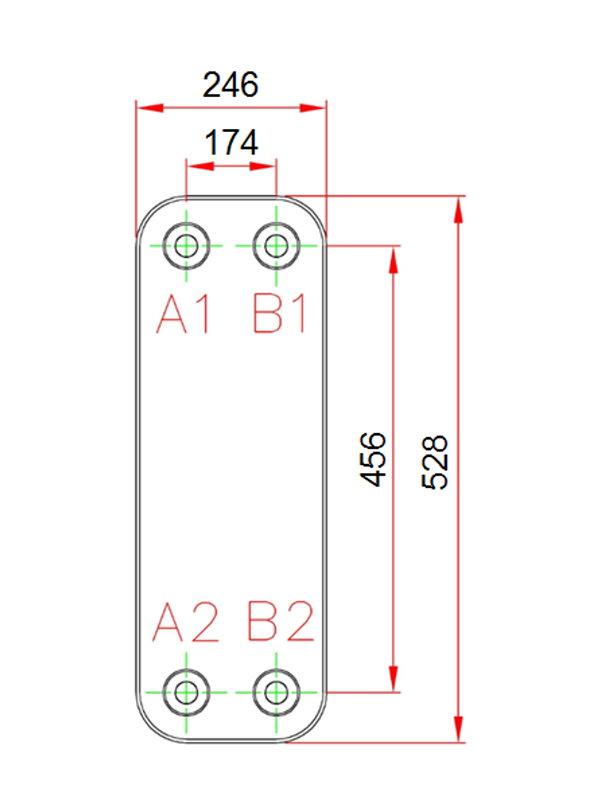

L1(mm): 528
L2(mm): 456
W1(mm): 246
W2(mm): 174

Kaori D206 brazed plate heat exchangers with 528mm in length and 246mm in width, making it the biggest model in Kaori’s double wall series. It is also one of a few models in the market that is capable of handling up to 45 Bar working pressure in its class, making it suitable for low GWP refrigerants (R32, R290 or HFO-blends refrigerants).
