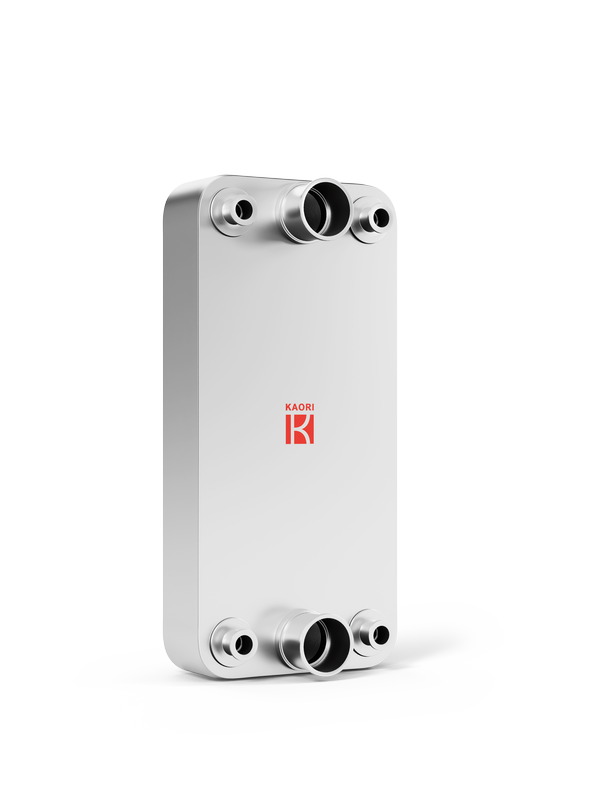

R215D
R215D
Micro Channel BPHE
R215D is the newly-developed BPHE dedicated to environment-friendly and high thermal transferring refrigerant such as R290(Propane),R32,R410A, R134a. Its 10% higher efficiency than conventional BPHE and lightweight significantly redue the carbon emission.
R215D provides the heating or cooling system developer's expected performance of evaporator and condenser.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Process Cooling/Heating
Semi Conductor
Machine Tool
Renewable Energy
District Heating
Boiler
Data Center Infrastructure
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
222
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
14.0+1.85*N
Weight(kg):
7.89+0.430*N
Connection-Male Thread(up to):
2 1/2"
Connection-Female Thread(up to):
2"
Connection-Solder(up to):
2 1/8"

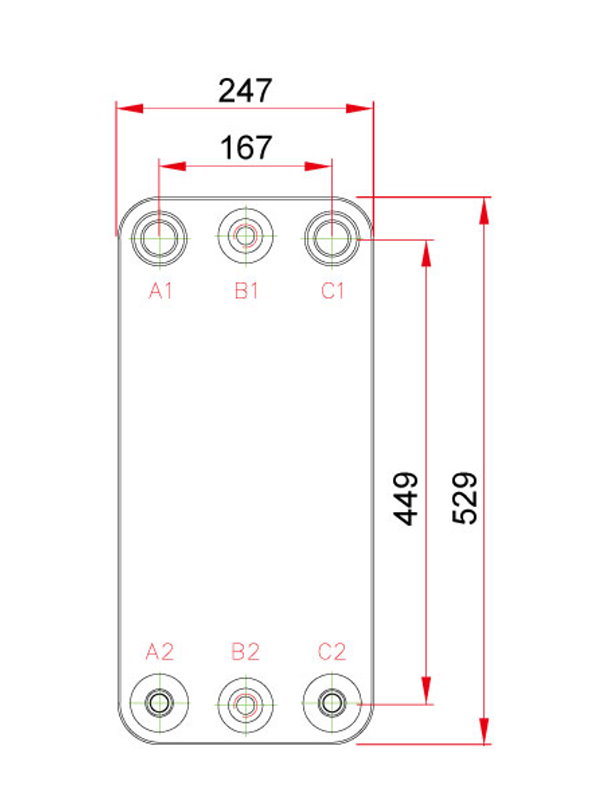

L1(mm):
529
L2(mm):
449
W1(mm):
247
W2(mm):
167
