R095

Size

Connector

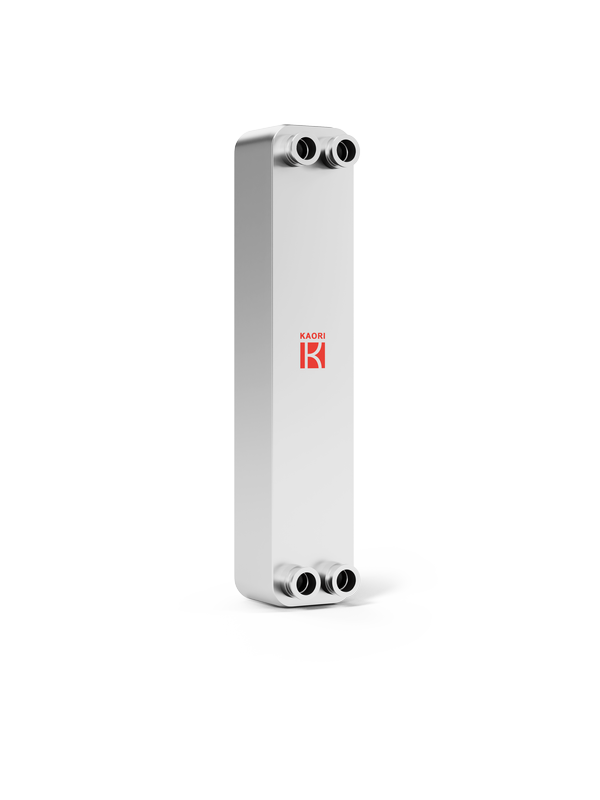

R095

Micro Channel BPHE

R095 is the newly-developed BPHE dedicated to environment-friendly and high thermal transferring refrigerant such as R290(Propane),R32,R410A, R134a. Its 10% higher efficiency than conventional BPHE and lightweight significantly redue the carbon emission.

R095 provides the heating or cooling system developer's expected performance of evaporator and condenser.

Industry: Chiller Heat Pump Reefer / Freezer Waste Heat Recovery Process Cooling/Heating Semi Conductor Machine Tool Renewable Energy District Heating Boiler Data Center Infrastructure Gear Box Heating/Cooling
Application: Evaporator Condenser Subcooler Economizer Oilcooler Intercooler
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 120
Working Pressure: 30
Max working temperature: 200
Thickness(mm): 10.0+1.85*N
Weight(kg): 2.73+0.154*N
Connection-Male Thread(up to): 1 1/4"
Connection-Female Thread(up to): 1"
Connection-Solder(up to): 1 3/8"
L1(mm): 522
L2(mm): 466
W1(mm): 106
W2(mm): 50

R095 is the newly-developed BPHE dedicated to environment-friendly and high thermal transferring refrigerant such as R290(Propane),R32,R410A, R134a. Its 10% higher efficiency than conventional BPHE and lightweight significantly redue the carbon emission.

R095 provides the heating or cooling system developer's expected performance of evaporator and condenser.
