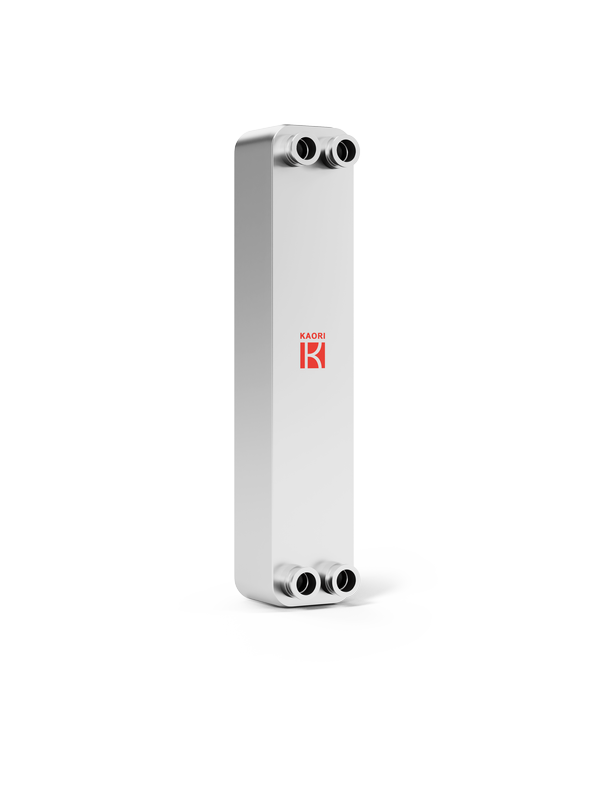

Micro Channel BPHE
R096 is the newly-developed BPHE dedicated to environment-friendly and high thermal transferring refrigerant such as R290(Propane), R32, R410A, R134a. R096 uses innovative design on shape of plates. Its light weight and high pressure resistence significantly reduces carbon emission, and the efficiency rises 10% as well.
R096 has perfect compatibility for working conditions, generating cooling and heating effects, especially evaporator and condenser.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Process Cooling/Heating
Semi Conductor
Machine Tool
Renewable Energy
District Heating
Boiler
Data Center Infrastructure
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
120
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
10.0+1.85*N
Weight(kg):
2.74+0.154*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 3/8"

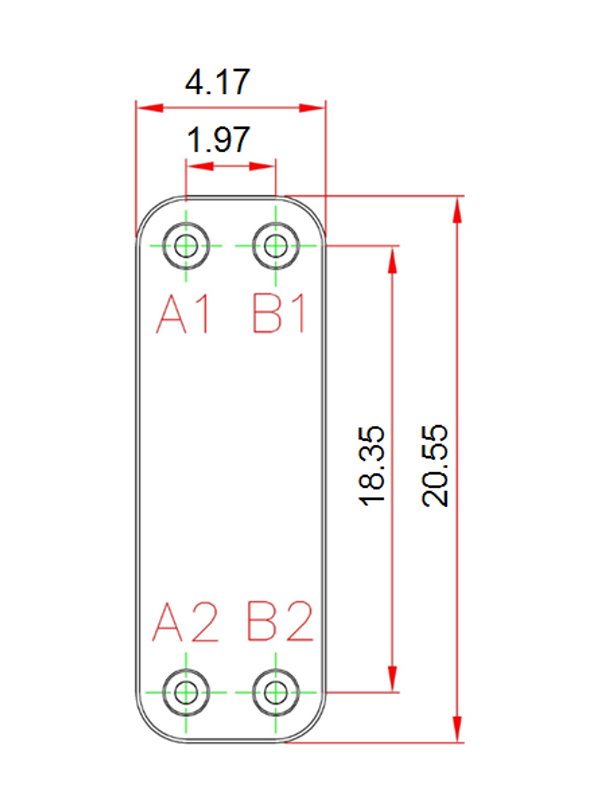

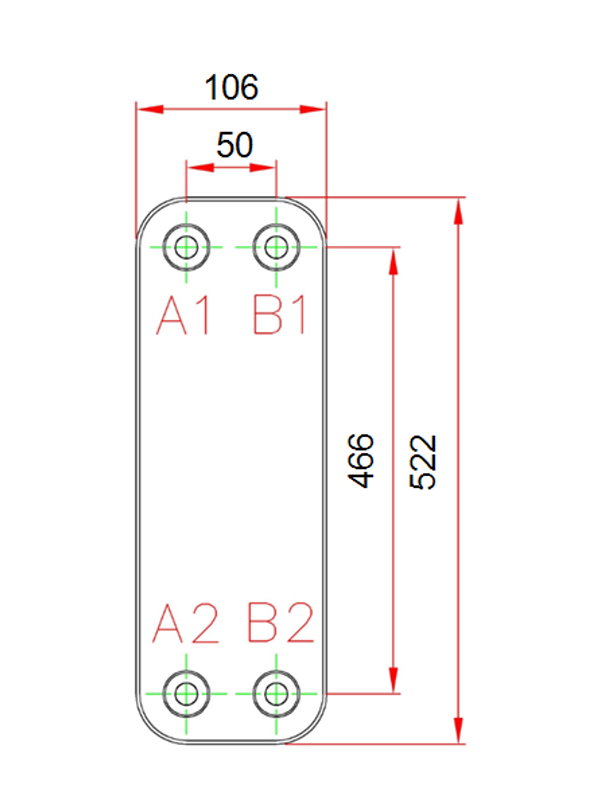

L1(mm):
522
L2(mm):
466
W1(mm):
106
W2(mm):
50
