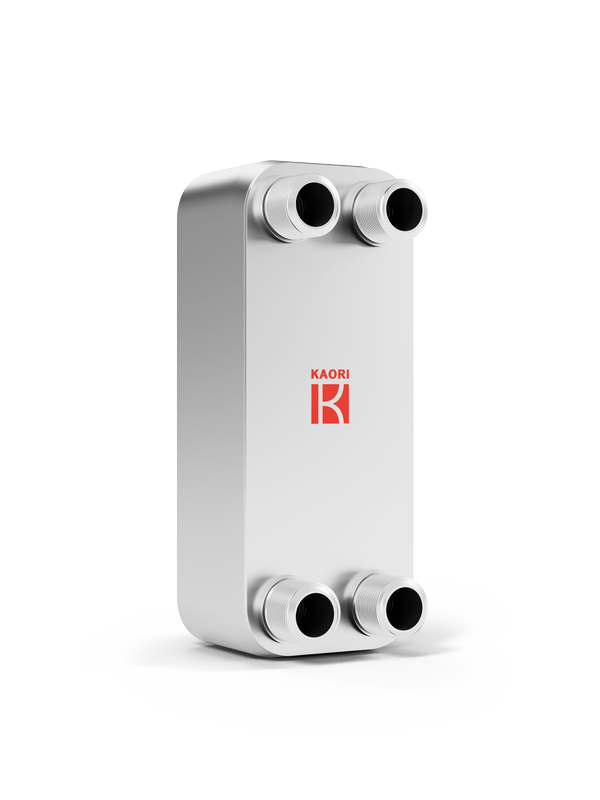

E030
E030
Gas Boiler BPHE
E series is designed with integration for water-to-water fluid in flow volume. E030 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E030 is the reliable solution to save the energy for gas boiler, district heating system, heat pump, and solar panel generator.
Industry:
Reefer / Freezer
Solar Heating
Floor Heating
Snow Melting
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Application:
Other
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
60
Working Pressure:
20
Max working temperature:
200
Thickness(mm):
7.0+2.25*N
Weight(kg):
0.29+0.047*N
Connection-Male Thread(up to):
3/4"
Connection-Female Thread(up to):
3/4"
Connection-Solder(up to):
7/8"

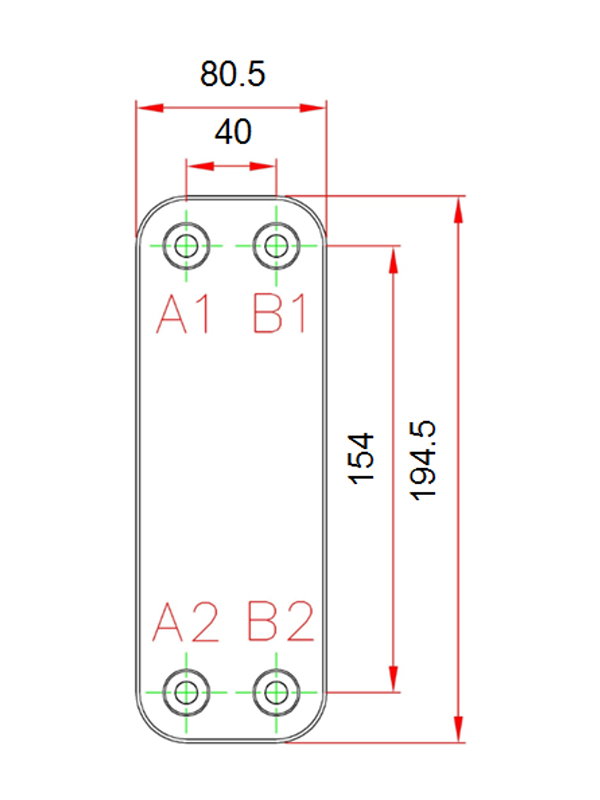

L1(mm):
195
L2(mm):
154
W1(mm):
80
W2(mm):
40
