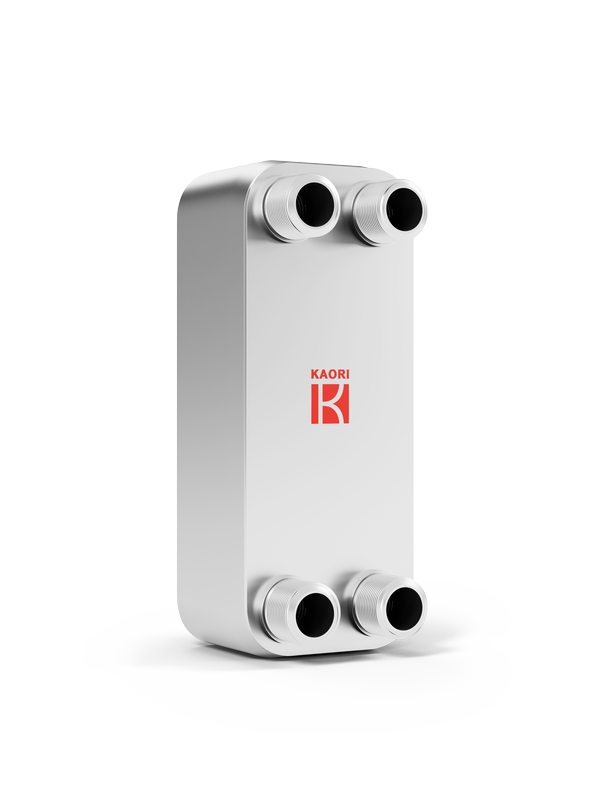

I030
I030
Impact Resistant BPHE
I series is the BPHE model with enforced structure to resist thermal shock and pressure shock caused by either the drastic temperature gap in cooling&heating system or the physical burst from the oil in hydraulic system. I series can satisfy the users who have high requriement for security and reliability.
I030 can afford the flow rate up to 60LPM, and it can be used in testing facility in lab , motor vehicle and commerical cooler.
Industry：
Food Equipment Industry
Pharmaceutical
Hydraulic Industry
Bio-Tech
Renewable Energy
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Application：
Economizer
Oilcooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
80
Working Pressure：
30
Min test pressure(bar)：
43
Max working temperature：
200
Max flow_rate：
65
Plate Heat Transfer Area：
0.0117
Thickness(mm)：
10.0+2.25*N
Weight(kg)：
0.59+0.047*N
Connection-Male Thread(up to)：
3/4"
Connection-Female Thread(up to)：
3/4"
Connection-Solder(up to)：
7/8"

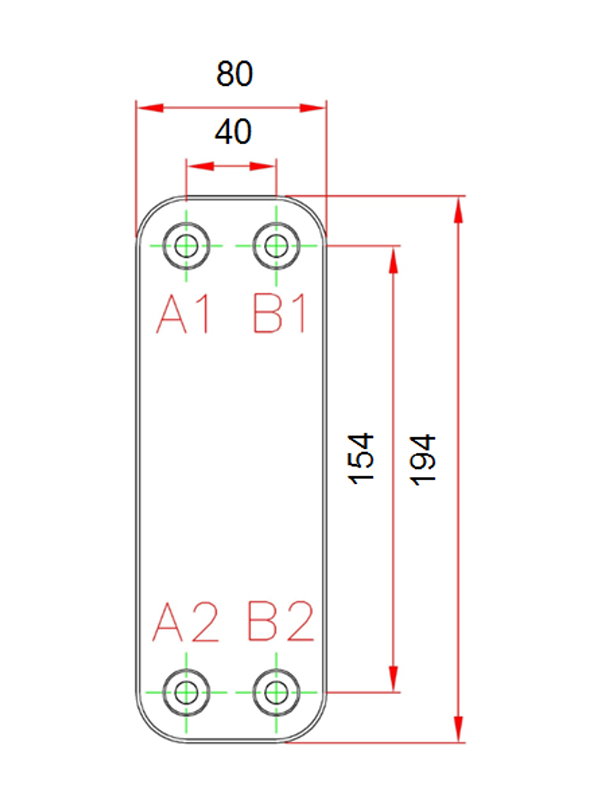

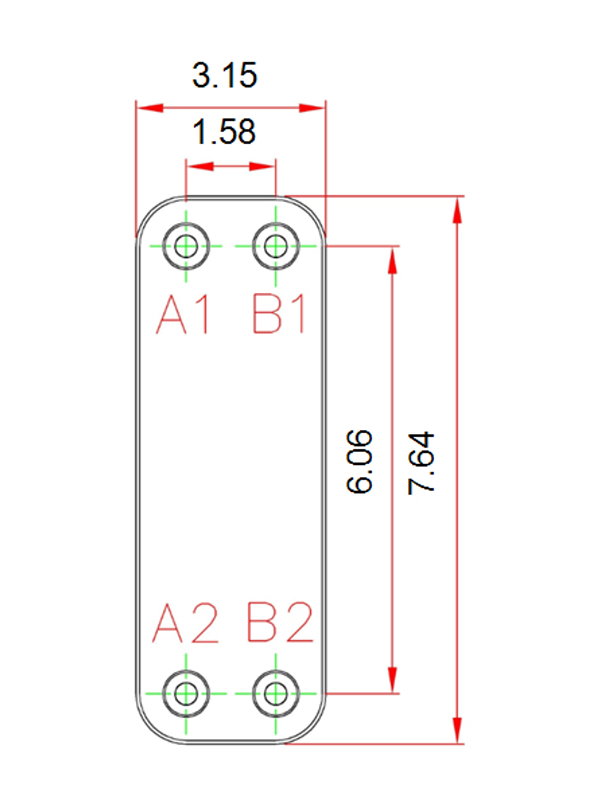

L1(mm)：
194
L2(mm)：
154
W1(mm)：
80
W2(mm)：
40
