K025S
K025S

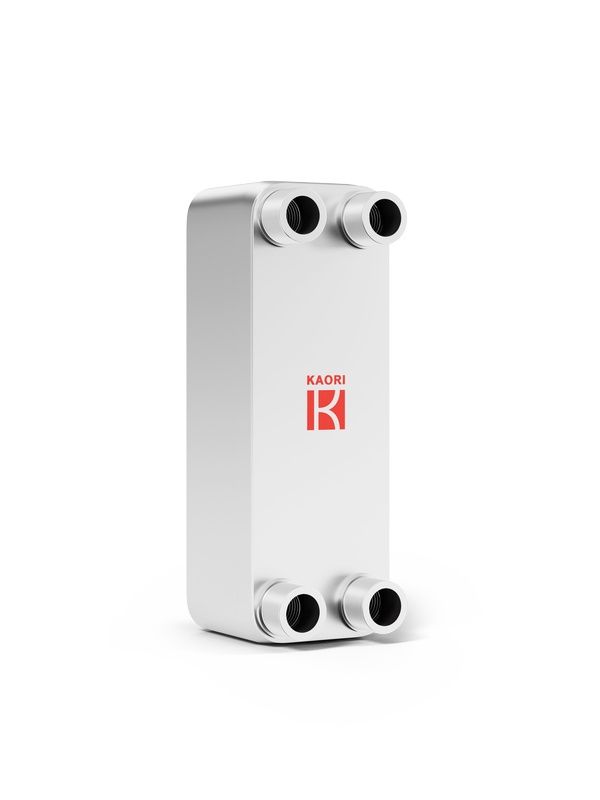

Extra Strength Brazed Plate Heat Exchanger
K025S is the model which can fucntion as condenser and de-superheater and sustain 45 BAR. It can be integrated with refrigerant, causing higher pressure such as R410A, R134a and other highy compressed gas.
K025S materializes the design of compact size and high thermal efficiency. It is widely used in residential and small size industrial HVAC, reefer, truck and medical facility.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
60
Working Pressure：
45
Max working temperature：
200
Thickness(mm)：
7.30+2.27*N
Weight(kg)：
0.51+0.040*N
Connection-Male Thread(up to)：
3/4"
Connection-Female Thread(up to)：
1/2"
Connection-Solder(up to)：
5/8"

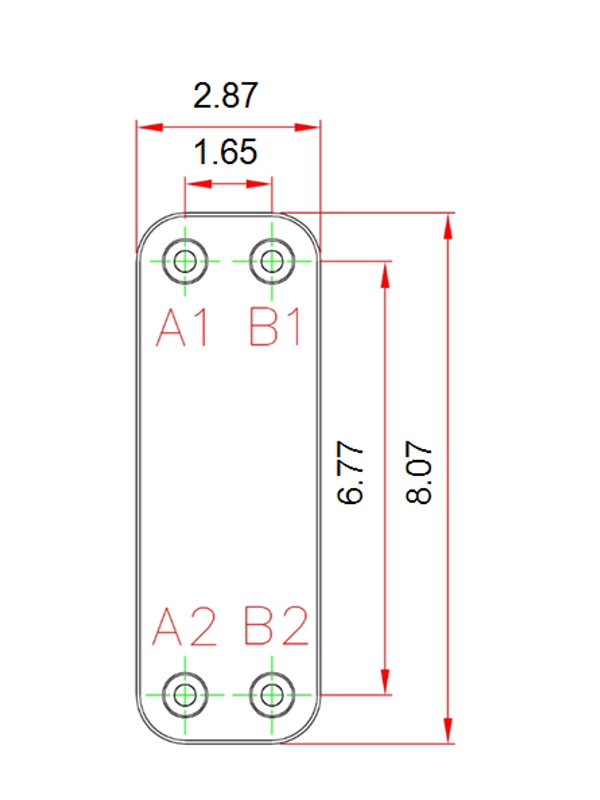

L1(mm)：
205
L2(mm)：
172
W1(mm)：
73
W2(mm)：
42
