K205S
K205S

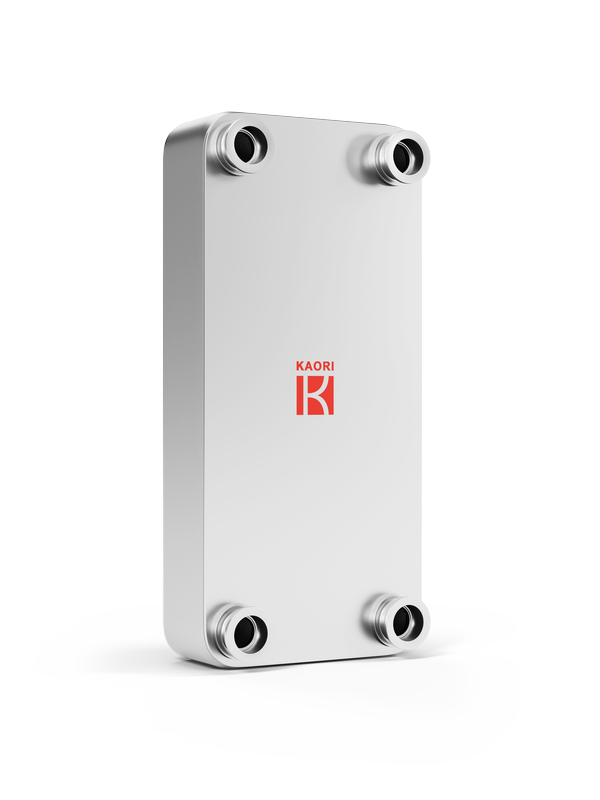

Extra Strength Brazed Plate Heat Exchanger
K205S has the sustainability for 45BAR and is mainly used in chiller, heat pump, commercial air condition and ORC generator.
K205S is also compatible with refrigerant, featured in high pressure, such as R410A and R134a.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
220
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
16.5+2.40*N
Weight(kg):
13.36+0.480*N
Connection-Male Thread(up to):
2"
Connection-Female Thread(up to):
1 1/2"
Connection-Solder(up to):
2 1/8"
L1(mm):
528
L2(mm):
456
W1(mm):
246
W2(mm):
174
