K070S
K070S

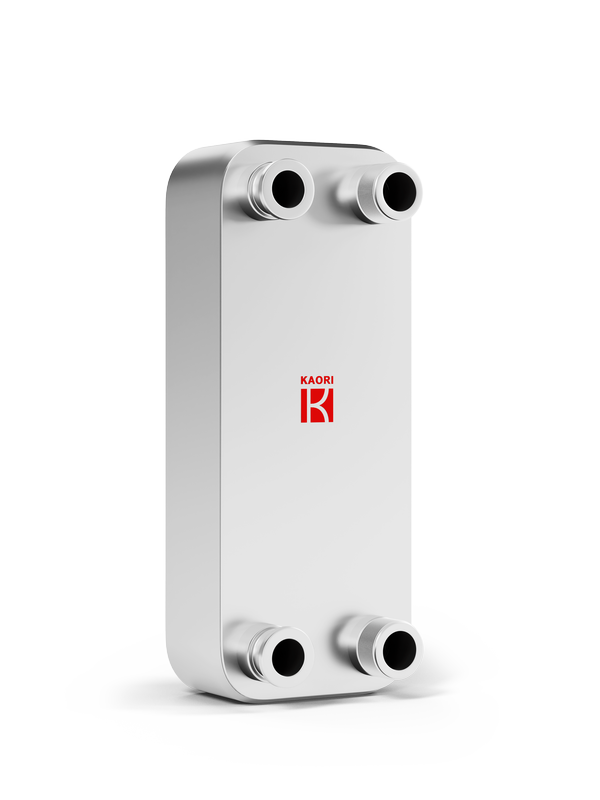

Extra Strength Brazed Plate Heat Exchanger
K070S has sustainability for 45BAR and well fits into high pressure refrigerant like R410A & R134a.
K070S is commonly used in refrigeration and heat pump. The high thermal efficiency and compact size saves the use of refrigerant in system and space in configuration.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
120
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
12.0+2.38*N
Weight(kg):
2.52+0.134*N
Connection-Male Thread(up to):
1 1/2"
Connection-Female Thread(up to):
1 1/4"
Connection-Solder(up to):
1 3/8"

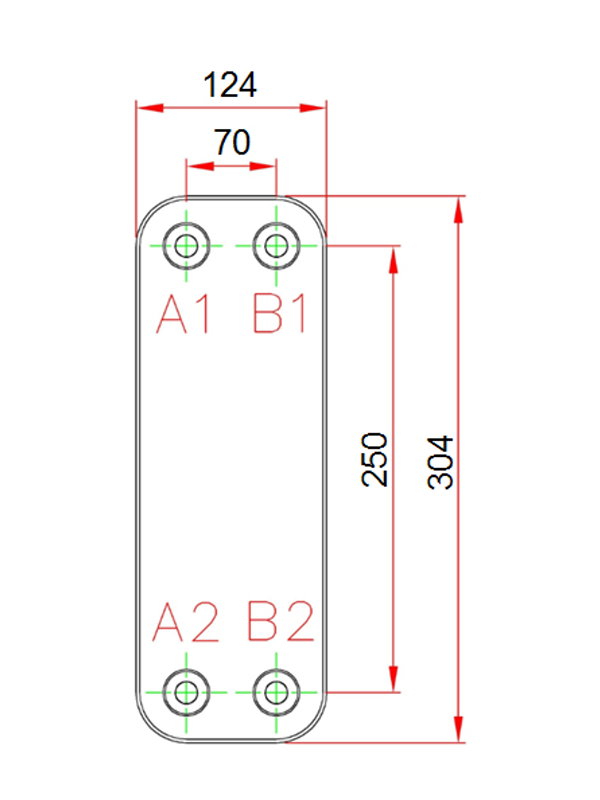

L1(mm):
304
L2(mm):
250
W1(mm):
124
W2(mm):
70
