K030S

Size

Connector

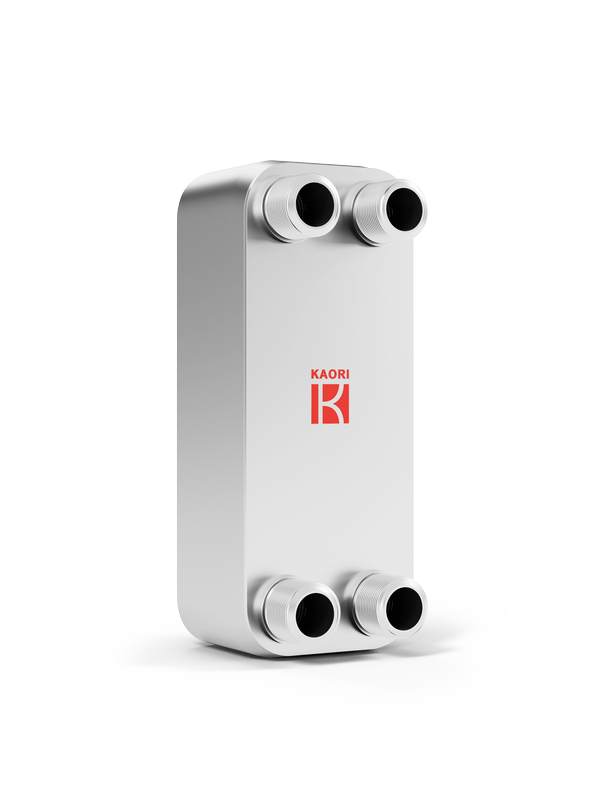

K030S

Extra Strength Brazed Plate Heat Exchanger

K030S has the capability to endure high pressure caused by R410A, R134a up to 45 BAR and other highly compressed gas in condenser and de-superheater. Despite home-use & commercial HVAC, K030S can be visible in industrial and medical refrigeration system.

Industry: Chiller Heat Pump Reefer / Freezer Waste Heat Recovery Food Equipment Industry Pharmaceutical Process Cooling/Heating Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy Solar Heating District Heating Boiler Fluid Cooling/Heating Data Center Infrastructure Plastic Injection / Rubber Extruder Machine Air Compressor Gear Box Heating/Cooling
Application: Evaporator Condenser Subcooler Economizer Oilcooler Intercooler
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 80
Working Pressure: 45
Max working temperature: 200
Thickness(mm): 11.0+2.20*N
Weight(kg): 0.96+0.047*N
Connection-Male Thread(up to): 3/4"
Connection-Female Thread(up to): 3/4"
Connection-Solder(up to): 7/8"

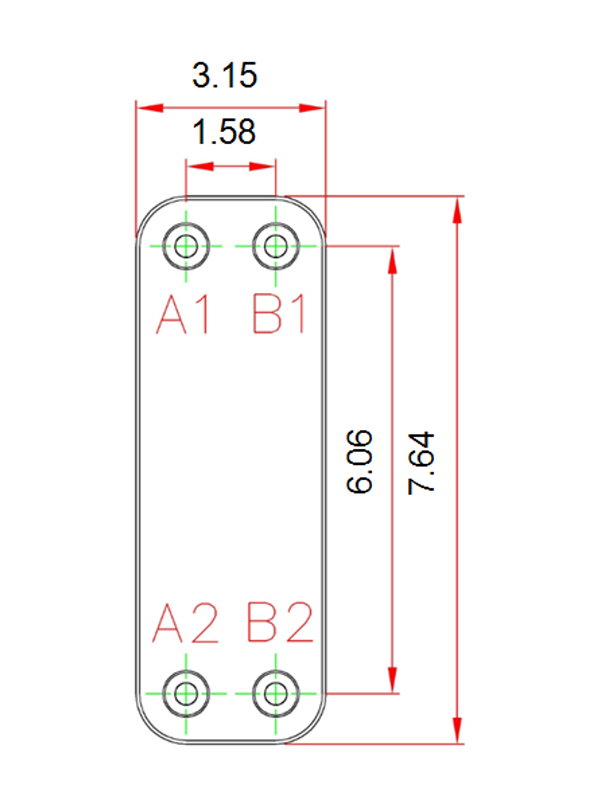

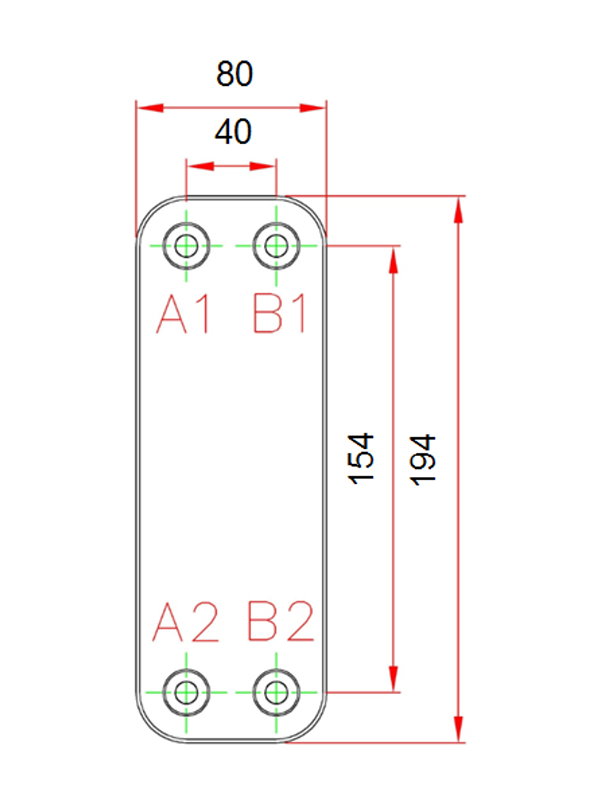

L1(mm): 194
L2(mm): 154
W1(mm): 80
W2(mm): 40

K030S has the capability to endure high pressure caused by R410A, R134a up to 45 BAR and other highly compressed gas in condenser and de-superheater. Despite home-use & commercial HVAC, K030S can be visible in industrial and medical refrigeration system.
