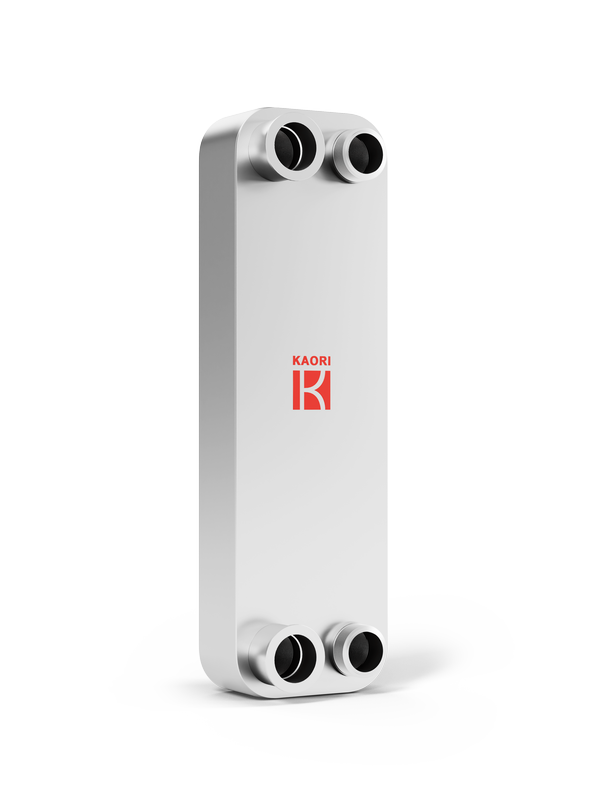

K200S
K200S
Extra Strength Brazed Plate Heat Exchanger
K200S is the BPHE dedicated to the fluid which has two- phase transformation, and it has perfect compatibility with various kinds of refirgerant. Despite high thermal efficiency, K200S can also maintain the pressure drop in the level which the system can tolerate and function. K200S can work well in application, including refrigeration storage and heat pump.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
220
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
17.0+2.40*N
Weight(kg):
12.12+0.404*N
Connection-Male Thread(up to):
2 1/2"
Connection-Female Thread(up to):
1 1/2"
Connection-Solder(up to):
2 1/8"

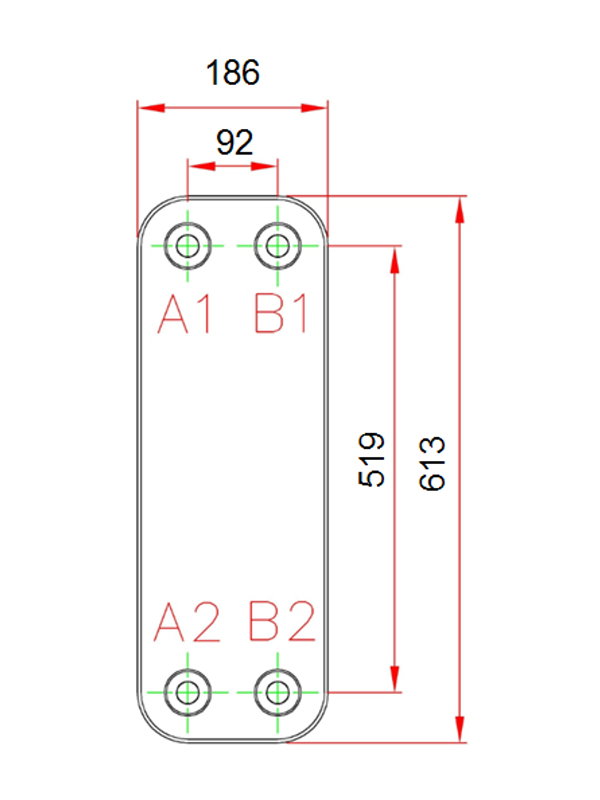

L1(mm):
613
L2(mm):
519
W1(mm):
186
W2(mm):
92
