K060S

Size

Connector

K060S

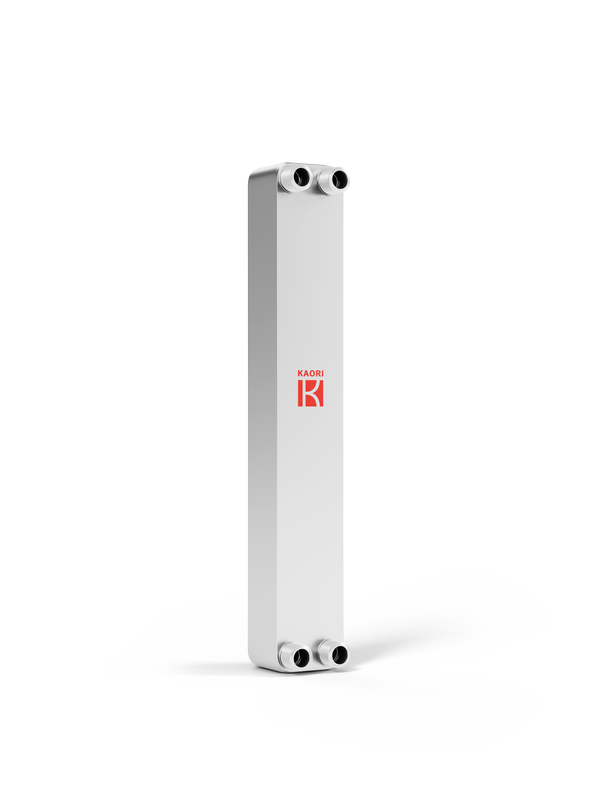

Extra Strength Brazed Plate Heat Exchanger

K060S has sustainability for 45BAR and well fits into high pressure refrigerant like R410A & R134a.

K060S is commonly used in refrigeration and heat pump. The high thermal efficiency and compact size saves the use of refrigerant in system and space in configuration.

Industry: Chiller Heat Pump Reefer / Freezer Waste Heat Recovery Food Equipment Industry Pharmaceutical Process Cooling/Heating Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy District Heating Boiler Fluid Cooling/Heating Data Center Infrastructure Plastic Injection / Rubber Extruder Machine Air Compressor Gear Box Heating/Cooling
Application: Evaporator Condenser Subcooler Economizer Oilcooler Intercooler
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 60
Working Pressure: 45
Max working temperature: 200
Thickness(mm): 10.0+2.30*N
Weight(kg): 1.23+0.100*N
Connection-Male Thread(up to): 1/2"
Connection-Female Thread(up to): 3/4"
Connection-Solder(up to): 3/4"

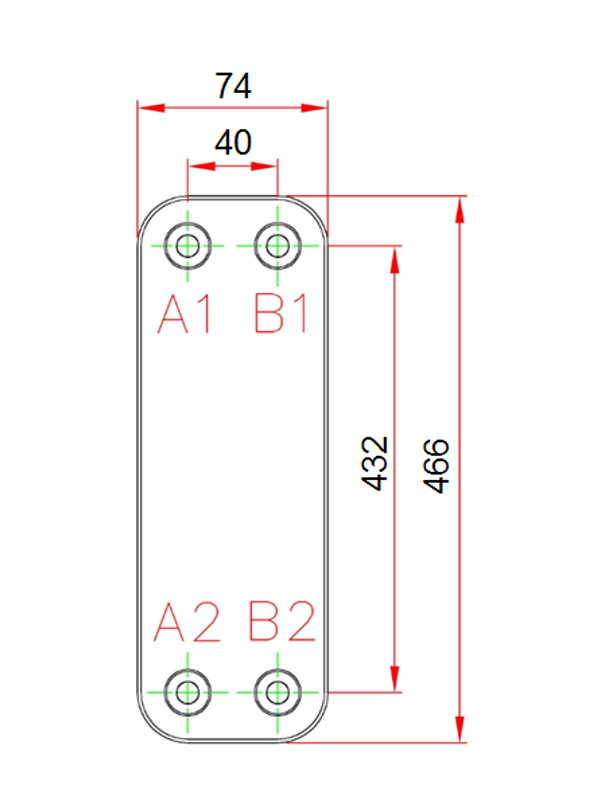

L1(mm): 466
L2(mm): 432
W1(mm): 74
W2(mm): 40

K060S has sustainability for 45BAR and well fits into high pressure refrigerant like R410A & R134a.

K060S is commonly used in refrigeration and heat pump. The high thermal efficiency and compact size saves the use of refrigerant in system and space in configuration.
