K050S
K050S

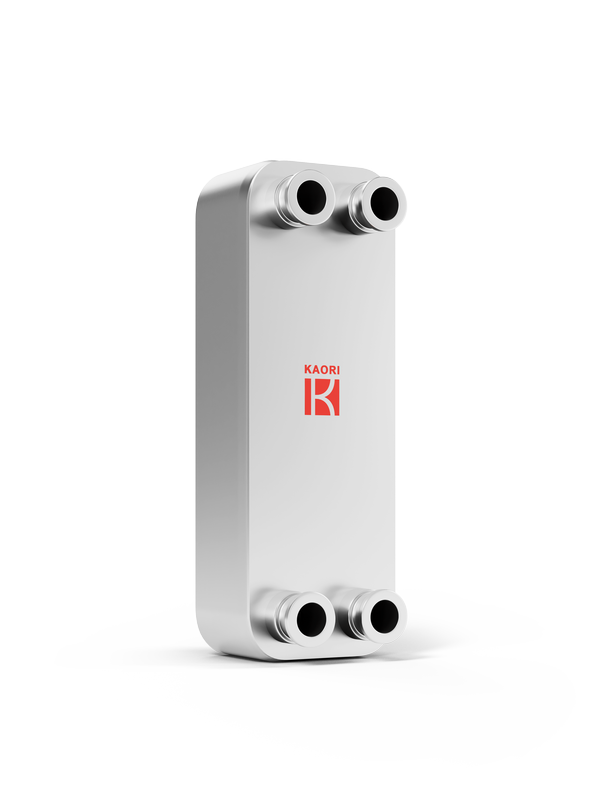

Extra Strength Brazed Plate Heat Exchanger
K050S has sustainability for 45BAR and well fits into high pressure refrigerant like R410A & R134a in condenser and de-superheater. K050S uses long flow channel to perform good thermal efficiency. The application covers heat pump, oil cooling system and chiller, featured in small flow volume and big gap in temperature difference.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
120
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
12.0+2.38*N
Weight(kg):
2.39+0.116*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 1/8"

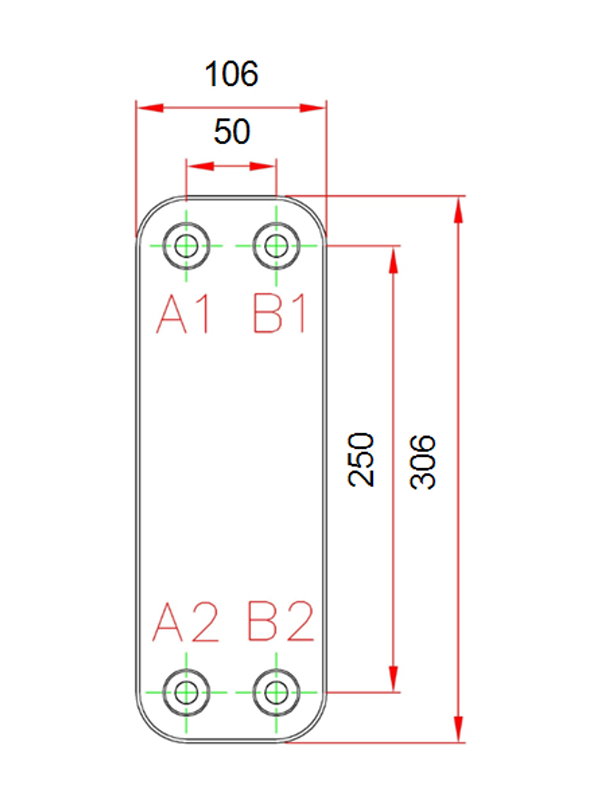

L1(mm):
306
L2(mm):
250
W1(mm):
106
W2(mm):
50
