C040

Size

Connector

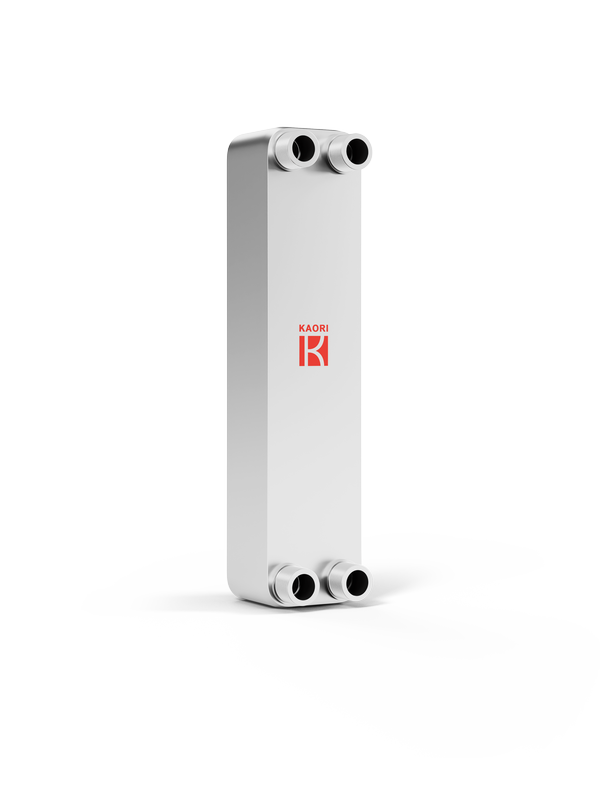

C040

Ultra High Pressure BPHE

C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C040 can sustain 70BAR and afford 8kW heat exchange. It is suitable for evaporator and condenser in refrigeration and freezing storage.

Industry: Chiller Heat Pump Reefer / Freezer Food Equipment Industry Pharmaceutical Process Cooling/Heating Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy
Application: Evaporator Condenser Subcooler Saver Intercooler
Heat Load(up to)kW: 7.03
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 60
Working Pressure: 70
Min test pressure(bar): 100
Max working temperature: 200
Max flow_rate: 60
Plate Heat Transfer Area: 0.0193
Thickness(mm): 13.0+2.00*N
Weight(kg): 1.74+0.145*N
Connection-Solder(up to): Depends on working condition

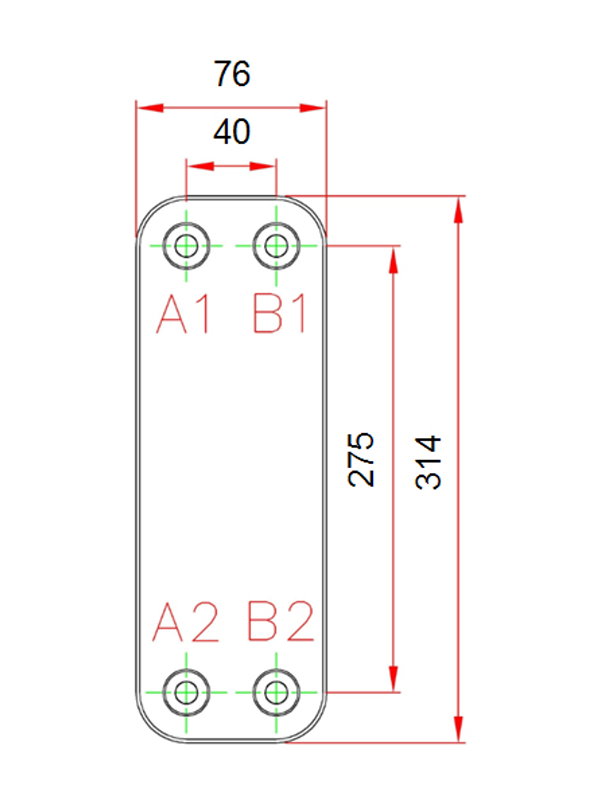

L1(mm): 314
L2(mm): 275
W1(mm): 76
W2(mm): 40

C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C040 can sustain 70BAR and afford 8kW heat exchange. It is suitable for evaporator and condenser in refrigeration and freezing storage.
