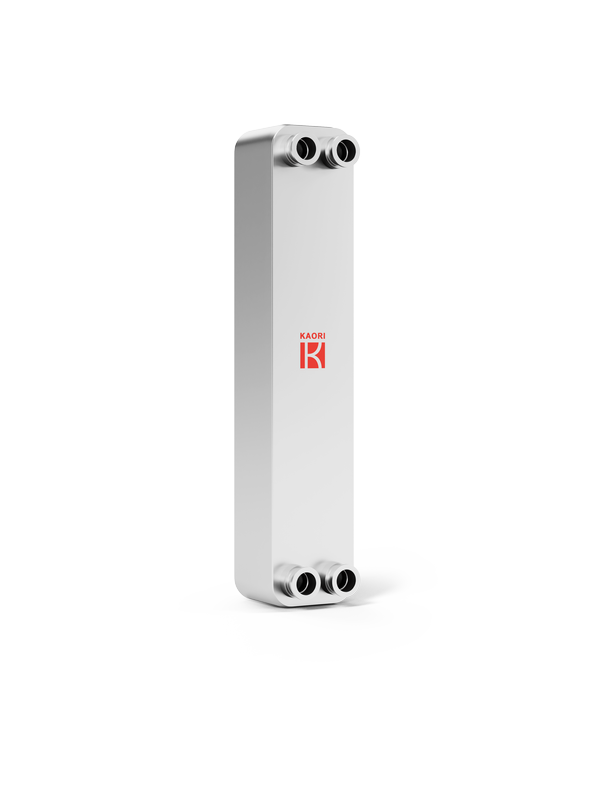

C096

Ultra High Pressure BPHE

C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C096 can sustain 100BAR and afford the pressure caused by R744 as thermal media. This capacity delights the COP value and results in "0 "ODP to protect the environment where we live. C096 can work well with pre-cooler and pervasive in various kinds of residential heat pump.

Industry: Chiller Heat Pump Reefer / Freezer Food Equipment Industry Pharmaceutical Process Cooling/Heating Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy
Application: Evaporator Condenser Subcooler Saver Intercooler
Heat Load(up to)kW: 52.74
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 110
Working Pressure: 100
Min test pressure(bar): 143
Max working temperature: 200
Max flow_rate: 260
Plate Heat Transfer Area: 0.0475
Thickness(mm): 13.2+2.16*N
Weight(kg): 5.68+0.320*N
Connection-Solder(up to): Depends on working condition

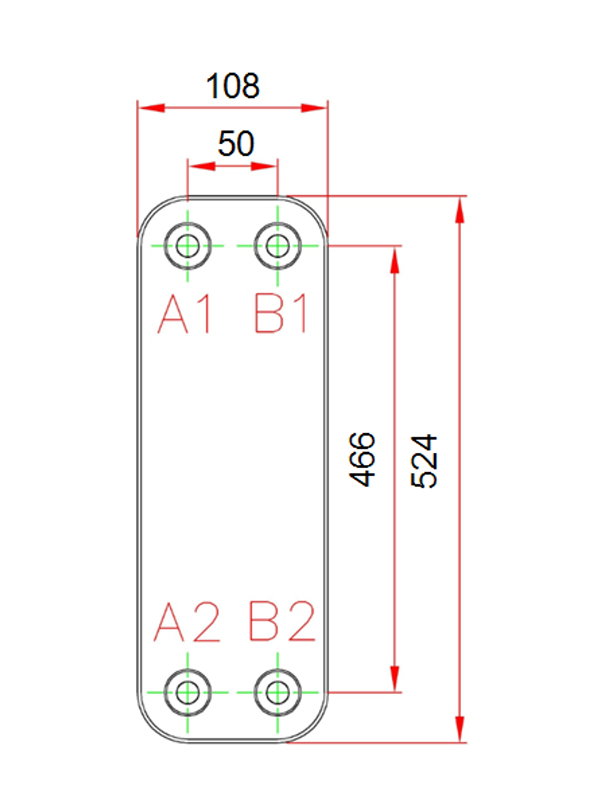

L1(mm): 524
L2(mm): 466
W1(mm): 108
W2(mm): 50

C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C096 can sustain 100BAR and afford the pressure caused by R744 as thermal media. This capacity delights the COP value and results in "0 "ODP to protect the environment where we live. C096 can work well with pre-cooler and pervasive in various kinds of residential heat pump.
