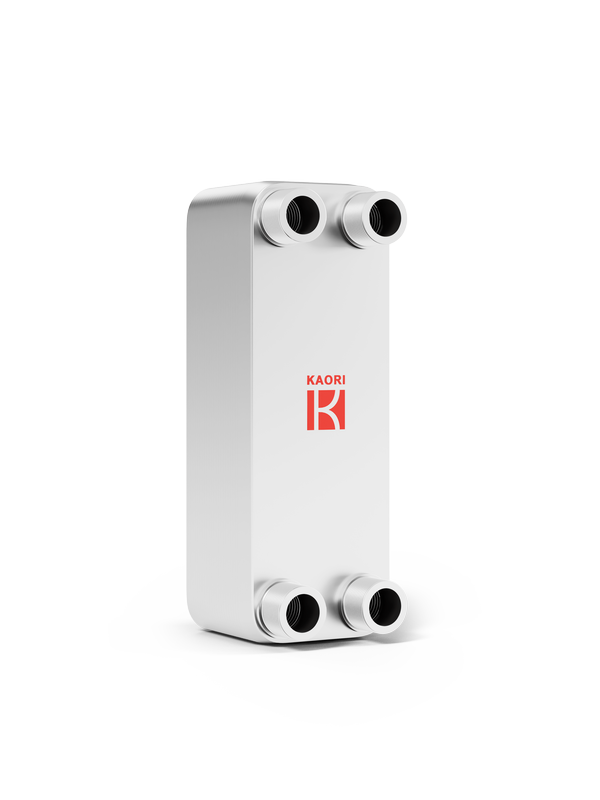

Standard Brazed Plate Heat Exchanger
K025 makes the character such as compact size, high efficiency in thermal exchange realistic. K025 can be used as not only condenser and evaporator but also subcooler or de-superheater which is mainly applied in residential or small size of commercial HVAC and refrigeration facility.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Aircooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
60
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
6.70+2.27*N
Weight(kg)：
0.48+0.040*N
Connection-Male Thread(up to)：
3/4"
Connection-Female Thread(up to)：
1/2"
Connection-Solder(up to)：
5/8"

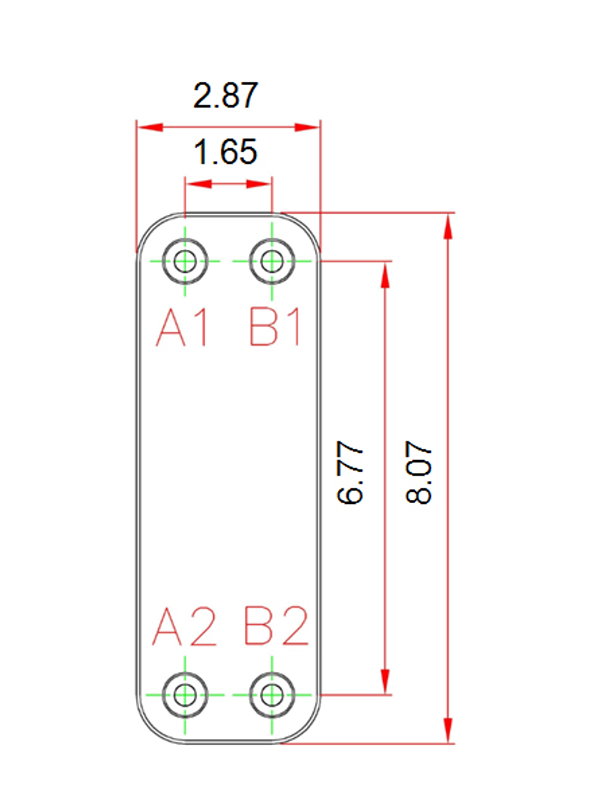

L1(mm)：
205
L2(mm)：
172
W1(mm)：
73
W2(mm)：
42
