K030
K030

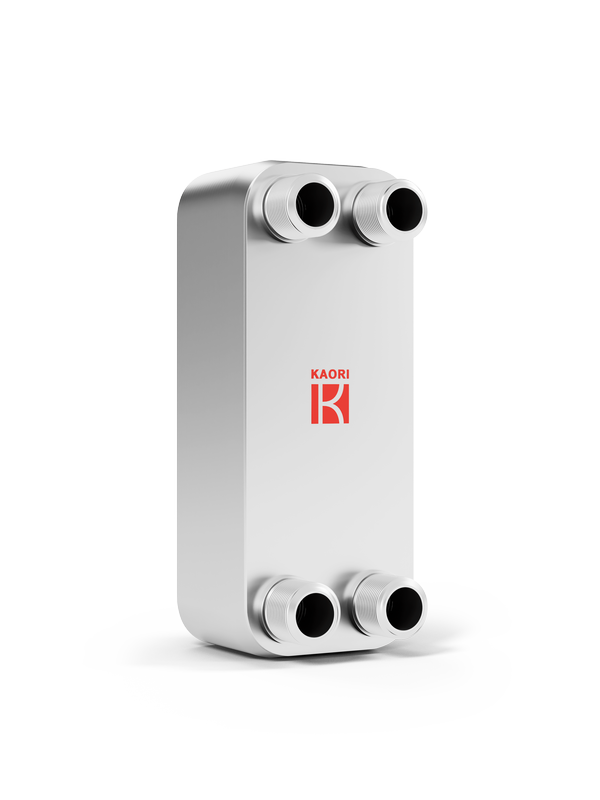

Standard Brazed Plate Heat Exchanger
K030 is commonly used in residential or commerical HVAC in small size as well as cooling system. In addition to condenser and evaporator, K030 can also be intergrated with de-superheater and subcooler.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
80
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
9.00+2.20*N
Weight(kg):
0.50+0.047*N
Connection-Male Thread(up to):
3/4"
Connection-Female Thread(up to):
3/4"
Connection-Solder(up to):
7/8"

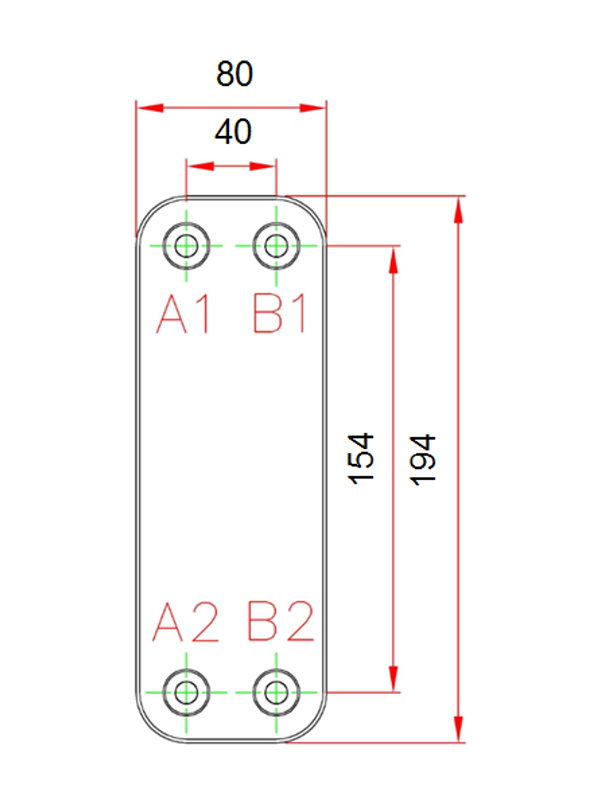

L1(mm):
194
L2(mm):
154
W1(mm):
80
W2(mm):
40
