K040
K040

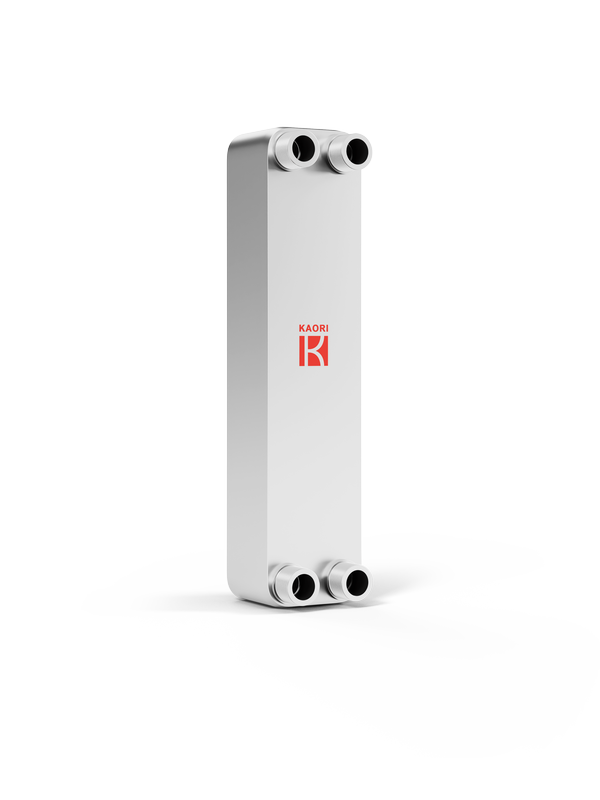

Standard Brazed Plate Heat Exchanger
K040 has longer flow channel to utilize the thermal exchange. It suits the conditions that the inlet&outlet temperature is closed, such as air cooling and heat recovery.
K040 also fits into small flow volume but huge gap in temperature difference, such as heat pump or small-scale community heating system.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
60
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
9.00+2.30*N
Weight(kg)：
0.79+0.070*N
Connection-Male Thread(up to)：
3/4"
Connection-Female Thread(up to)：
1/2"
Connection-Solder(up to)：
3/4"

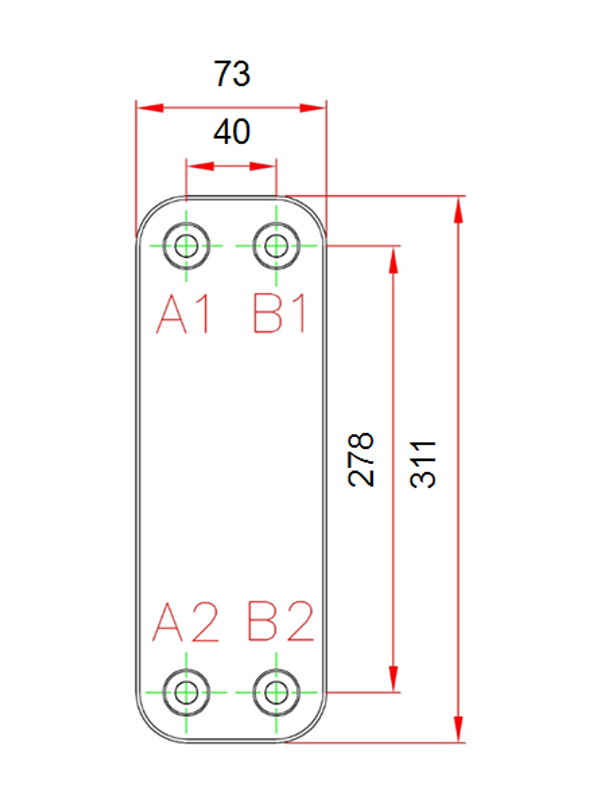

L1(mm)：
311
L2(mm)：
278
W1(mm)：
73
W2(mm)：
40
