K050
K050

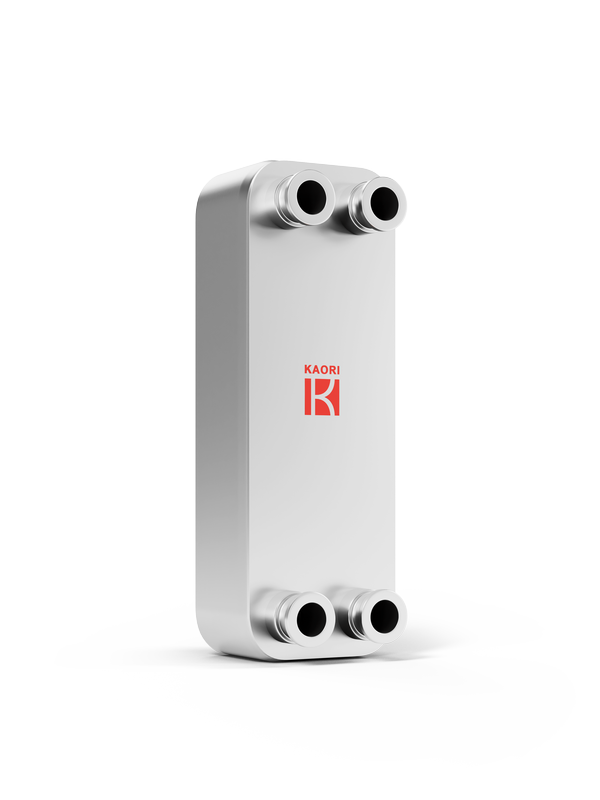

Standard Brazed Plate Heat Exchanger
K050 has the corrugated plates characterized in three types, including high efficiency, balance, and low pressure drop, which is optional for clients in terms of price and performance.
The major application for K050 is industry related to cooling and heating, such as evaporator, condenser, economizer, and Con./Evap.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Data Center Infrastructure
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
120
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
10.0+2.38*N
Weight(kg)：
1.19+0.116*N
Connection-Male Thread(up to)：
1 1/4"
Connection-Female Thread(up to)：
1"
Connection-Solder(up to)：
1 1/8"

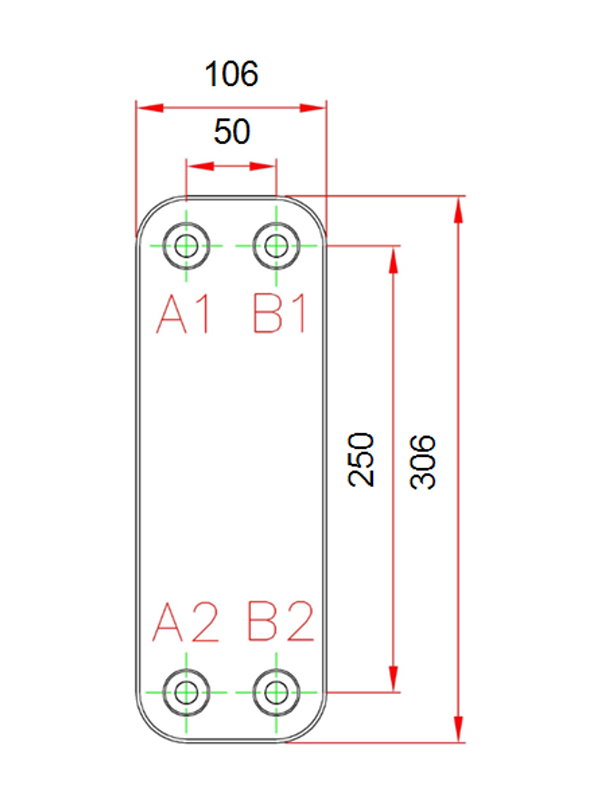

L1(mm)：
306
L2(mm)：
250
W1(mm)：
106
W2(mm)：
50
